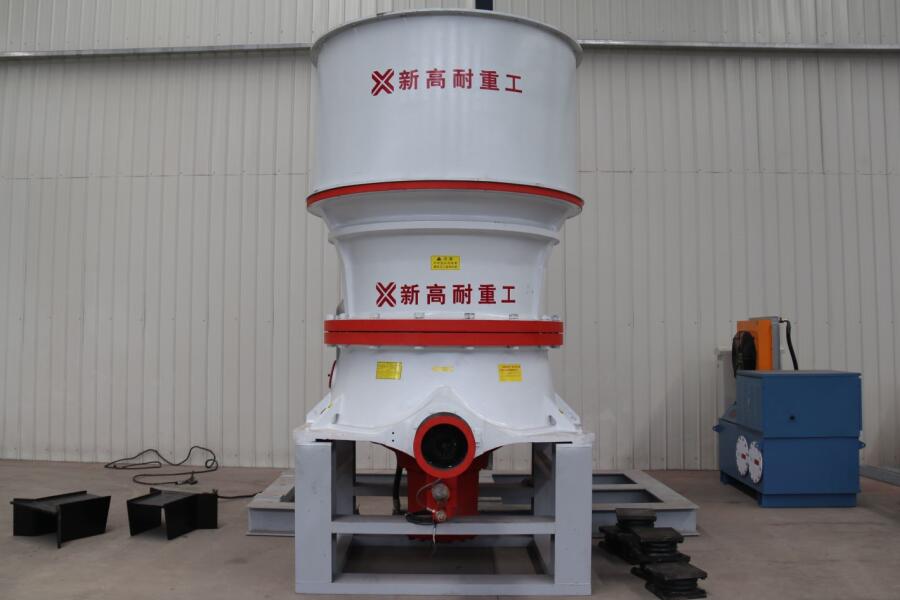

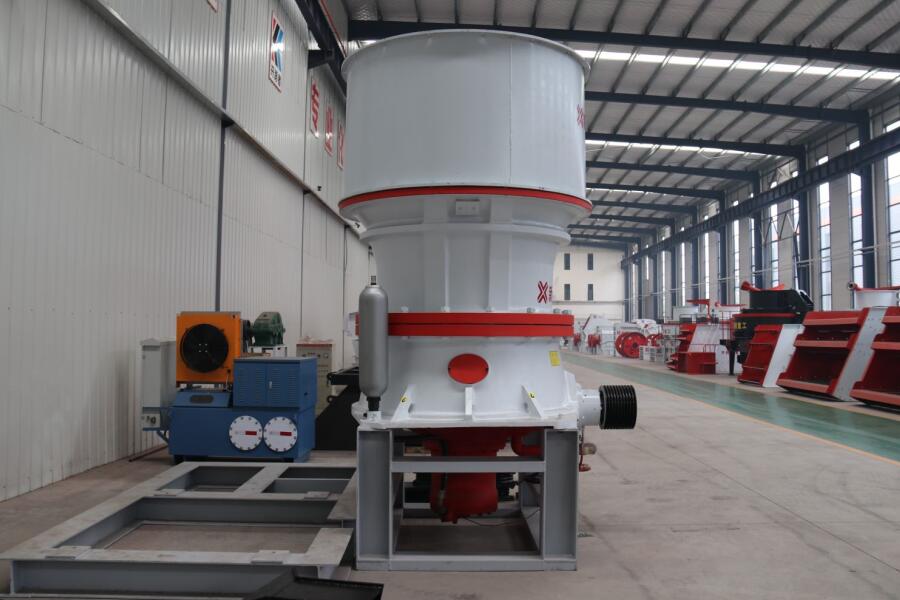

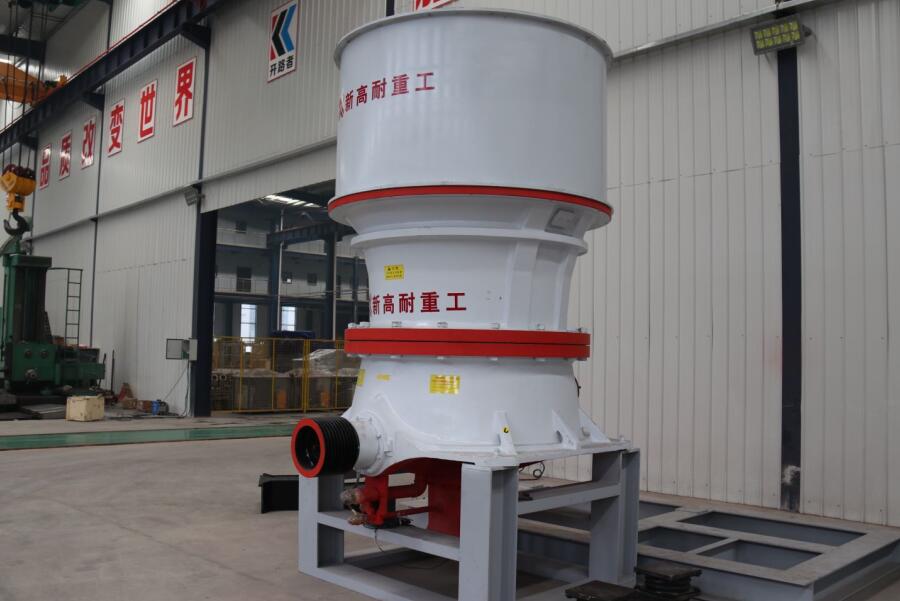

XGP Series Single Cylinder Hydraulic Cone Crusher

XGP Series Single Cylinder Hydraulic Cone Crusher

XGP Series Single Cylinder Hydraulic Cone Crusher
Feeding Size
≤420mm Feeding Size
Processing Capacity
35-1400t/h Processing Capacity

PRODUCT INTRODUCTION

The XGP series single-cylinder hydraulic cone crusher developed by Xingaonai Group through optimization and upgrading integrates machinery, hydraulic pressure, automation, intelligent control and other technologies. It is suitable for medium and fine crushing operations of relatively hard materials, with high automation and low production costs. And other advantages, occupy an important share in the mine crushing equipment market.


Applicable materials:XGP series single-cylinder hydraulic cone crusher is a new type of intelligent cone crusher, suitable for fine crushing of various hard ores such as granite, river pebbles, iron ore, and non-ferrous metal ores.

Scope of application:XGP series single-cylinder hydraulic cone crusher is widely used in the secondary crushing of materials in mining, chemical industry, roads and bridges, construction and other fields.

Internal Structure:It mainly in cludes the composition of components such as the upper frame, the lower frame, the main shaft, the horizontal axis, the horizontal axis, the dynamic cone, the lining, the eccentric cover, the size of the gear, the belt wheel, and the hydraulic cylinder.

XGP300,XGP500,XGP300S,XGP500S

Best selling machine model

FEATURES

1、High crushing ratio

Metal forging main axis, precision motion of motion cone, large diameter oil cylinder at the bottom, perfect cooperation; the special alloy material of the fixed cone lining is better,it has better abrasion resistance,it forms a perfect crushing tilt with the dynamic cone,the broken ratio is greater.

2、Widely applicable

Hydraulic lubrication and cooling system, dual overload protection, two -way adjustment automatic constant temperature, can adapt to various harsh operating environments; multi -gear adjustment of eccentric distance, self -lubricating alloy copper sleeve, a constant crushing cavity design of the mounted cone lining plate, effectively extend the service life and reduce operating costs.

3、Reasonable design

The upper frame assembly of the arm support structure and bowl -shaped bearings can effectively protect the top bearing; the lower bracket assembly high -strength three bracket structure, which views more window design; the horizontal bearing is independent cyclic lubrication design to effectively reduce the temperature of the bearings.

4、Running smoothly

Dynamic cone's eccentricity angle and better stability; the overall rack, through 6 composite vibration reduction rubber pads to support the flexible support of the equipment, effectively reduce dynamic impact, ensure the stable equipment foundation; all casting standard production standards, sturdy and durable.

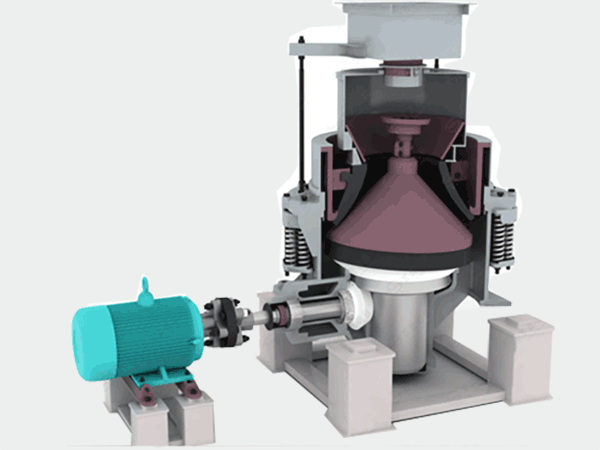

The motor rotates through the belt wheel drive, and the transmission shaft is rotated around the main shaft through the large and small cone gears, the eccentric set drives the moving cone for a spinning movement, so that the cone can be broken and closer, and sometimes leaves the surface of the rolling wall that is fixed on the adjustment cover, materials are constantly impacted in the crushing cavity, squeezing and bending to achieve crushing.

XGP Series Single Cylinder Hydraulic Cone Crusher WORKING PRINCIPLE
ModelType

Feed port

(mm)

Max feed size

(mm)

Discharge port size

(mm)

Motor power

(kw)

Host weight

(kg)

Capacity

(tph)

XGP100A1501207-3990580035-135
B130105
C10085
XGP200A22518012-45200-2201270085-350
B150120
C8060
XGP300A22518010-50250-28016700140-490
B150125
C8060
XGP500A28022012-45315-35527000245-715
B150125
C10080
ModelType

Feed port

(mm)

Max feed size

(mm)

Discharge port size

(mm)

Motor power

(kw)

Host weight

(kg)

Capacity

(kg)

XGP100SA32025035-10075-909500140-520
B250210
XGP200SA34028035-105160-20013400160-610
B250210
XGP300SA38032035-100220-25018200250-870
B280240
XGP500SA50042045-105280-31532700300-1400
B380320
