YDG Series Roller Sand Making Machine

YDG Series Roller Sand Making Machine

YDG Series Roller Sand Making Machine
Feeding Size
≤40mm Feeding Size
Processing Capacity
50-300t/h Processing Capacity

PRODUCT INTRODUCTION

The roller sand making machine is also called roller crusher,it is a sand making machine with independent intellectual property rights in our group for many years,it has a variety of specifications and is suitable for medium crushing operations of ore and rocks below medium hardness,outstanding performance can meet the needs of sand making in many fields such as smelting and mine.


Applicable materials:Double-roller sand making machine, also known as roller crusher, is suitable for medium and fine crushing of materials with medium hardness and below, such as limestone and ceramic raw materials.

Scope of application:The double-roller sand making machine is widely used in the crushing and sand making of materials in gravel yards, construction, mining, water conservancy and other fields.

Internal Structure:It is mainly composed of roller, roller support bearing, tightness and adjustment device, and driving device.

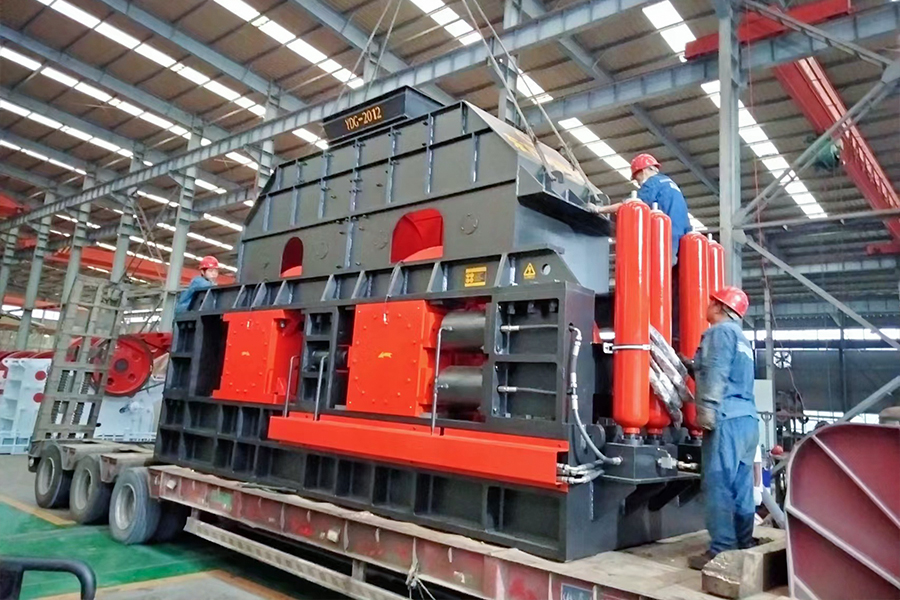

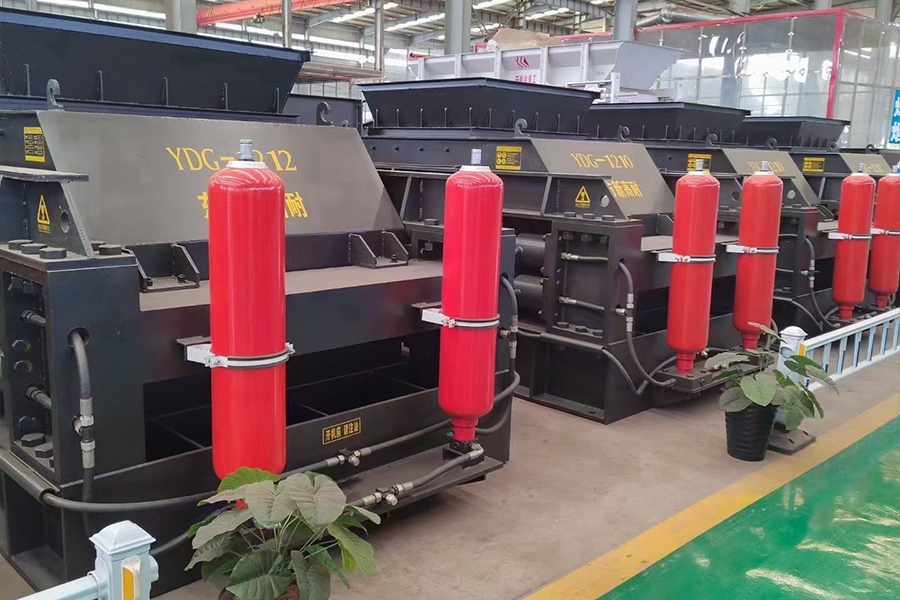

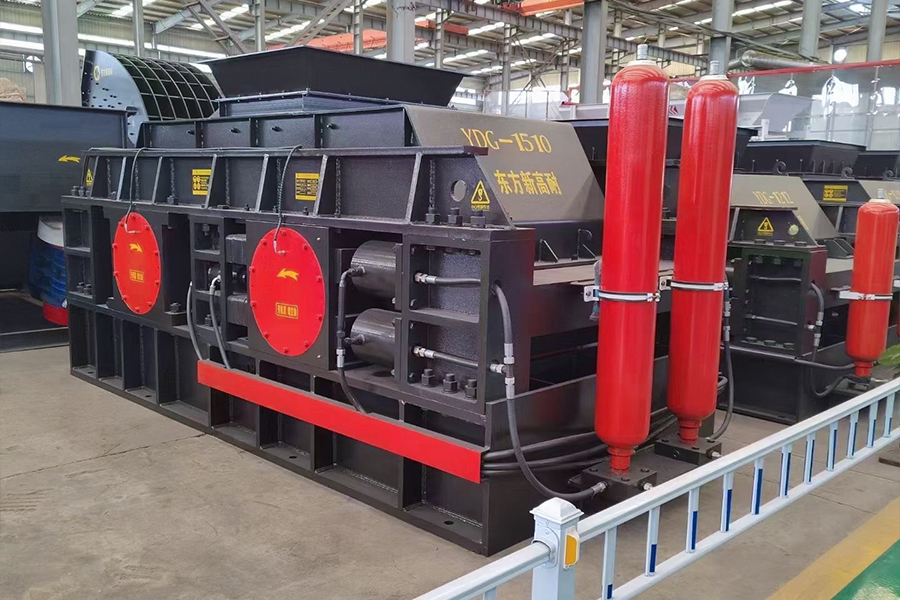

YDG-1210,YDG-1510,YDG-2012

Best selling machine model

FEATURES

1、Adjustable discharge fineness

Full hydraulic adjustment,the discharge fineness can be adjusted by adjusting the wedge block or gasket between the two rollers, so as to achieve uniform and round particle size of the finished product and reasonable gradation.

2、Energy saving and environmental protection

Equipped with a low energy consumption and environment-friendly motor, the airflow self-circulation system inside the turbine cavity, less dust overflow, low noise, energy saving and environmental protection.

3、Low production cost

The roller skin is made of Mn18Cr2, which is wear-resistant and durable. The grinding roller can be used repeatedly, effectively reducing production costs.

4、Large production capacity

Large volume, large material throughput per unit time, high production efficiency.

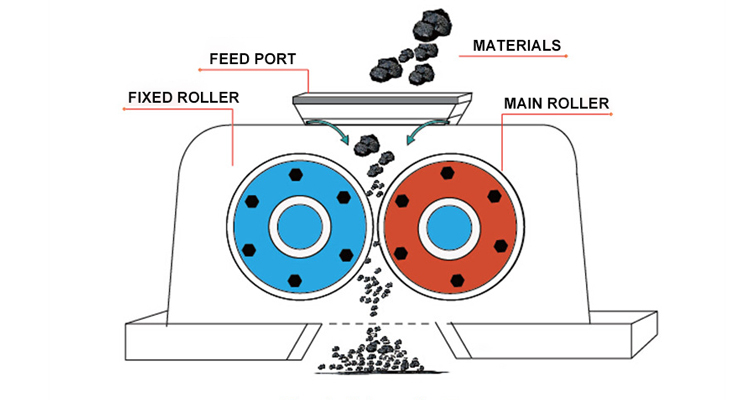

The driving mechanism is composed of two electric motors, which are driven by a V-belt to the groove wheel and drag the roller to rotate in a relative direction,after the material enters the crushing chamber of the machine, it will be subjected to the meshing force of the rotating roller shaft, passing between the two rollers and being crushed by the roller shaft, starting to break,the small particles after breaking will be thrown out towards the bottom of the machine along the tangent line of the roller rotation through the gap between the two roller shafts,large particles exceeding the gap will continue to be broken into small particles and discharged.

YDG Series Roller Sand Making Machine WORKING PRINCIPLE
Model

Roller diameter

(mm)

Roller surface width

(mm)

Feed size

(mm)

Motor power

(kw)

Capacity

(tph)

YDG-10801000800≤302*3750-80
YDG-121012001000≤302*75100-120
YDG-121212001200≤302*90120-150
YDG-151015001000≤302*132140-170
YDG-181018001000≤402*220160-230
YDG-201220001200≤402*315250-300
